Detector fotoelectric de fum adresabil certificare CPD - Panasonic
click pentru manualul de utilizare

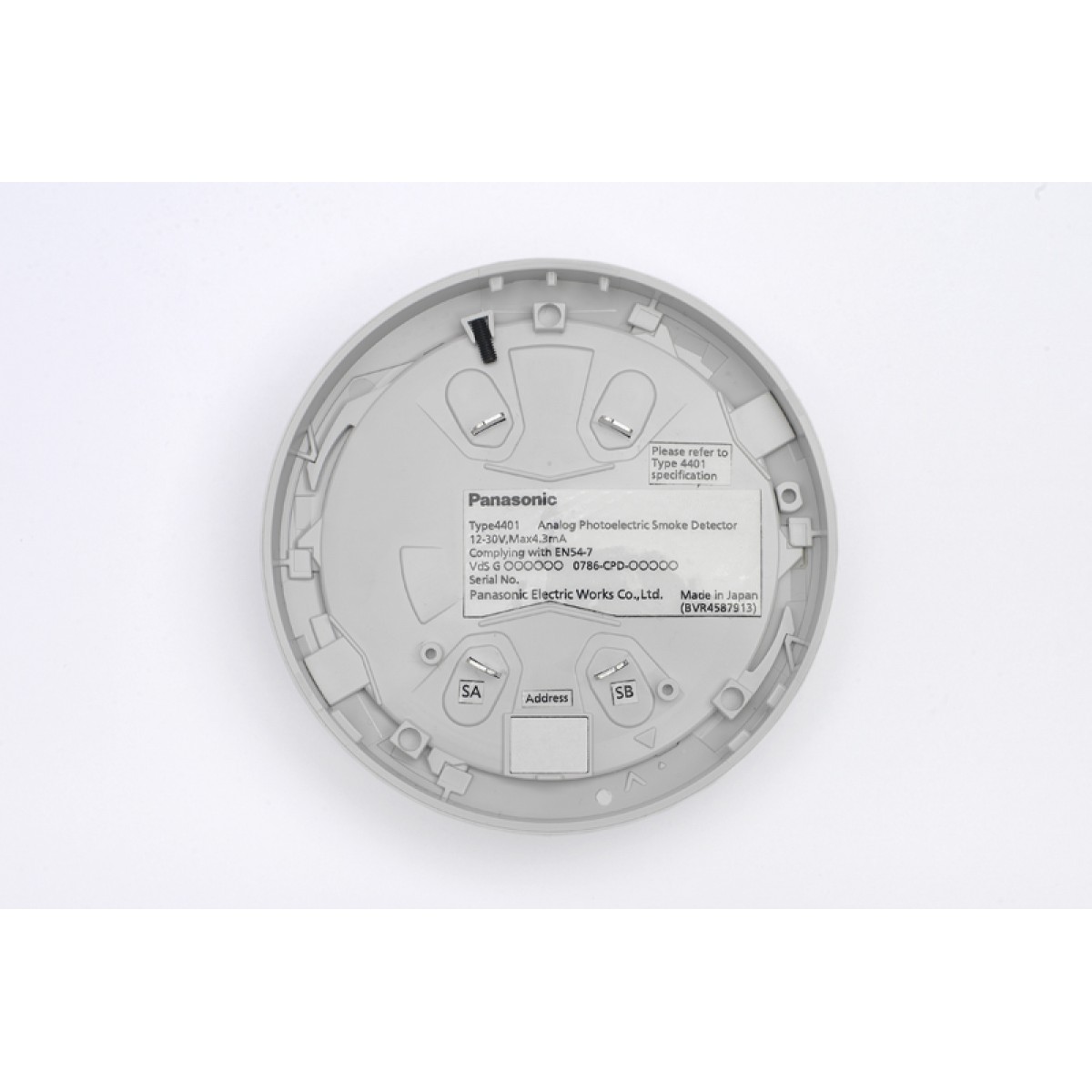

The photoelectric (optical) smoke detector has a low profile housing. The latest IC technology will secure the highest reliability possible. It has unleaded soldering. The smoke detection chamber has a high-efficient optical system with an infrared light LED and a photodiode with two lenses. Light reflection is used to detect smoke, which enters the detection chamber through an insect filter and an optical labyrinth. The detector is supplied with two red LEDs that will be blinking when the detector has activated alarm. It also has a green polling LED. The detector is plugged in an analog base (3312x / 4313 / 3379). The COM loop is connected to the base, which also can have terminals for an external LED, e.g. 2218. The detector is intended for indoor use in dry premises and in the systems EBL128 / 512 / 512 G3.
||Fotoelectric / Fum
