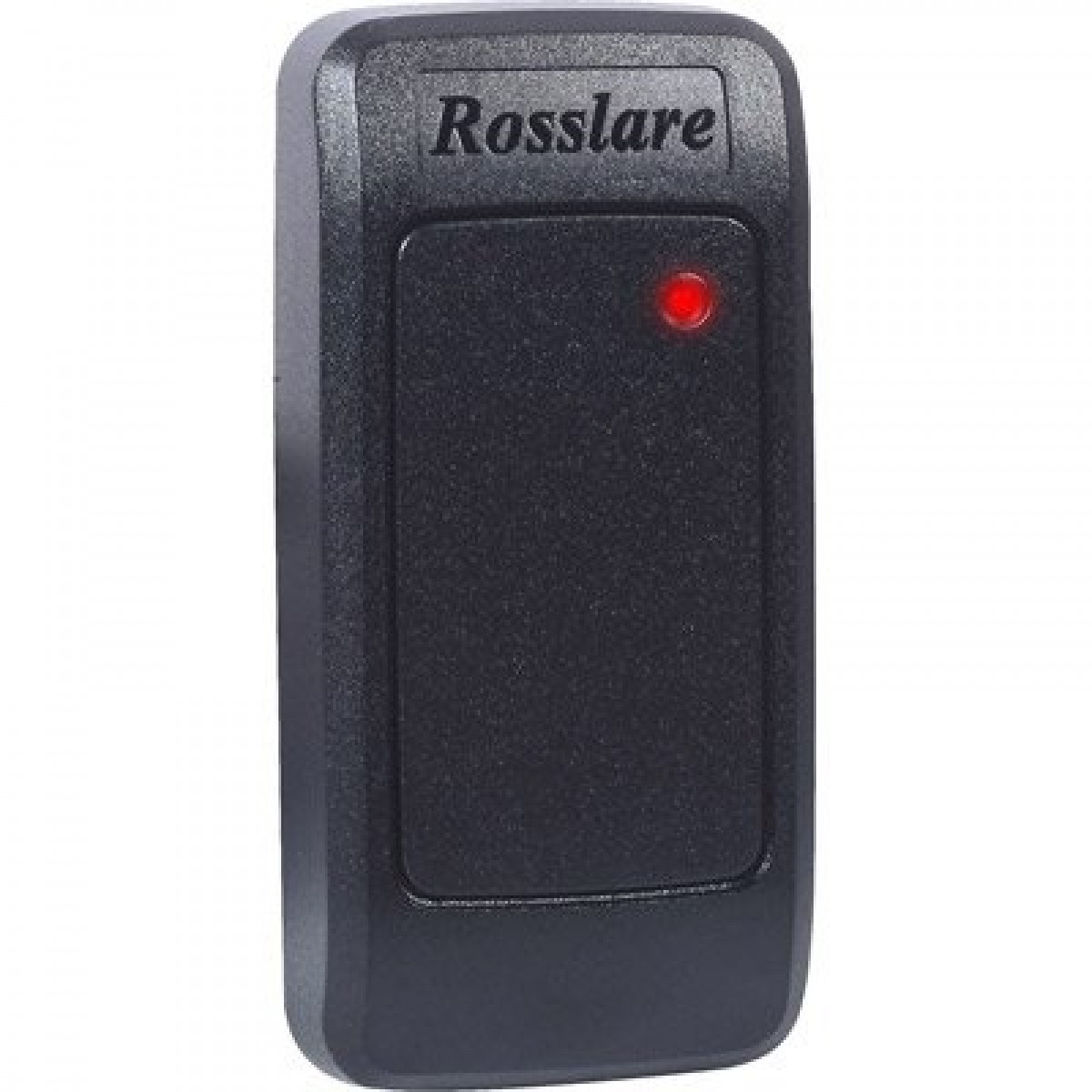

Cititor de Proximitate de Interior/Exterior Rosslare,

standard comunicare cu centrala: Wiegand26,

distanta de citire 8 cm

ELECTRICAL
CHARACTERISTICS
• Operating Voltage Range: 5-16 VDC, from a regulated power supply.
• Input Current: Standby: 35mA at 12 VDC
Maximum: 50mA at 12 VDC
• LED Control: Dry Contact, N.O.
• Proximity: Maximum read range*: 80mm (3.15")
Modulation: ASK at 125 kHz
Compatible cards: All 26-Bit EM Cards
* Measured using Rosslare Prox Card AT-R14 or equivalent. Range also depends on electrical
environment and proximity to metal.
• Tamper: Optical back tamper sensor, O.C. active low 16mA max sink current
OPERATIONAL
CHARACTERISTICS
• Output Format: Wiegand 26 Bits
• Audio/Visual: Bi-color LED indicator, Built-in sounder
• Design: Epoxy potted, fully sealed in a rugged polycarbonate enclosure. Suitable for
harsh environments.
ENVIRONMENTAL
CHARACTERISTICS
• Operating Environment: Water resistant, suitable for outdoor use (IP65 rated)
• Operating Temperature: -31°C to 63°C (-25°F to 145°F)
• Operating Humidity: 0 to 95% (non-condensing)
• RFI Protection: > 20 V/m up to 1000 MHz
PHYSICAL CHARACTERISTICS
• Dimensions: 80mm x 40mm x 12.8mm (3.1" x 1.6" x 0.5")
• Weight: 70.5g (0.155 lbs)
