Cos Golire Cos

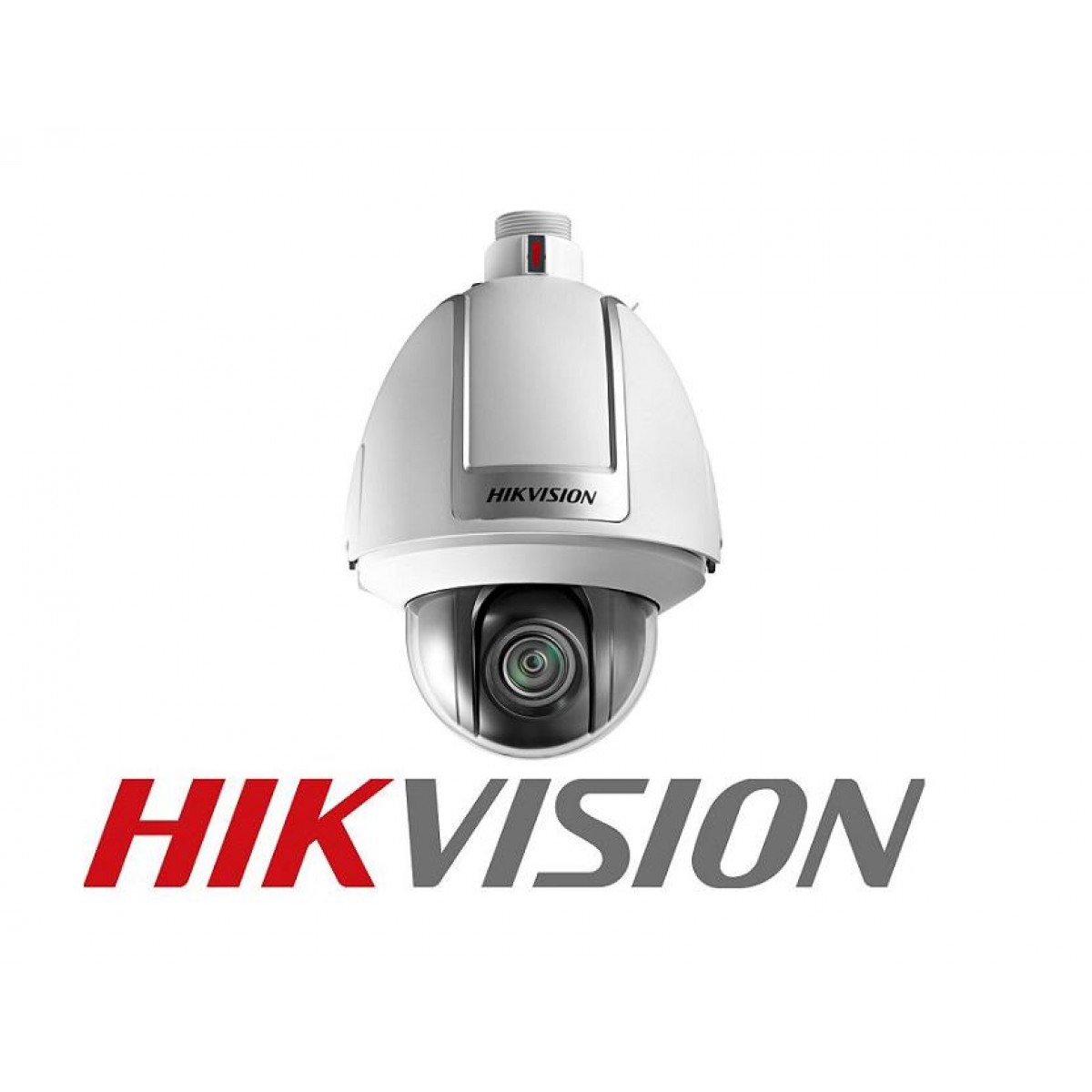

Camera Speed Dome HD IP/Analog
-10 %
Camera Speed Dome HD IP/Analog
Oferta speciala expira in:
Zile
Ore
Min
Sec
5031,81Lei
5590,90Lei
Fără TVA: 4158,52Lei
- Producator: Hikvision Speed Dome
- Model: Camera-Speed-Dome-IP- 1280x720-Zoom-18X-ATW-AGC-BLC-ICR
Produse vandute: 21

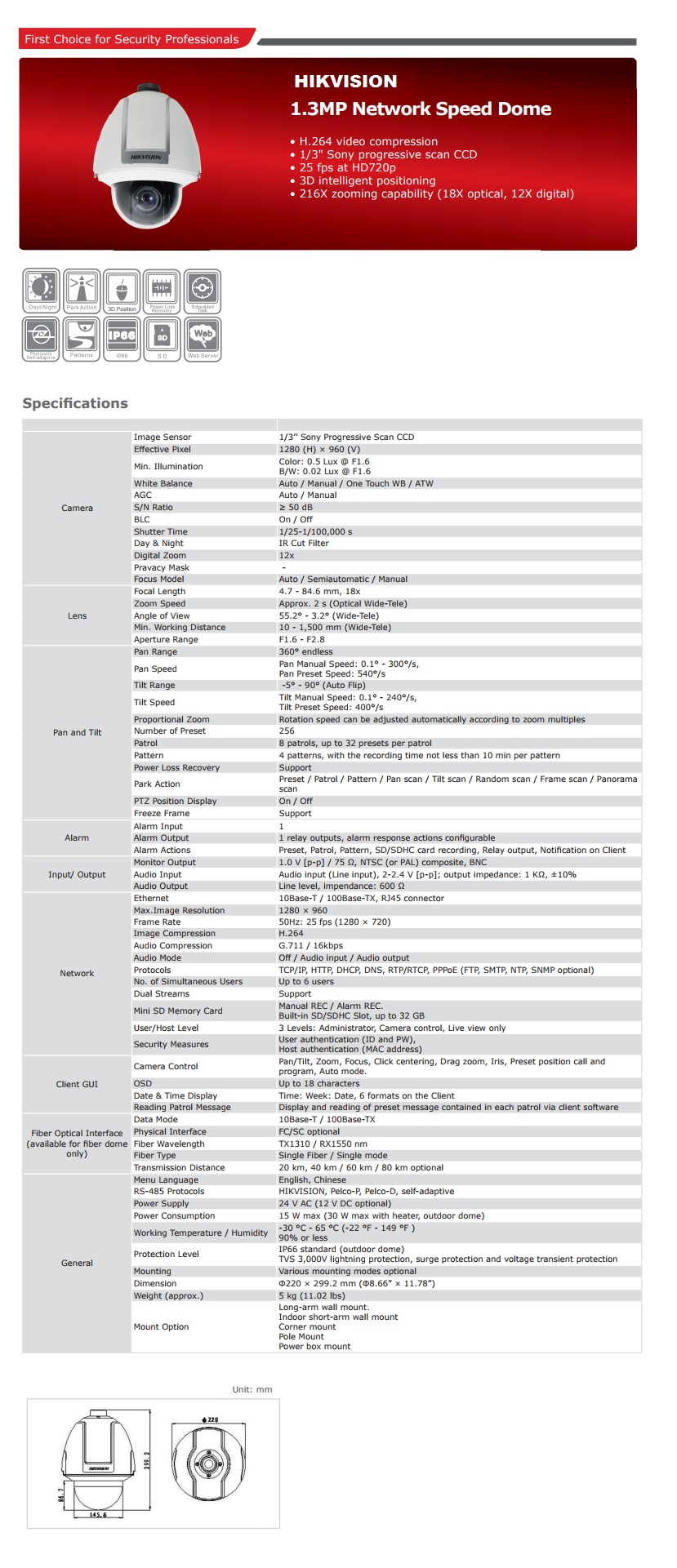

Click pentru specificatii
• H.264 video compression
-
• 1/3" Sony progressive scan CCD
• 25 fps at HD720p
• 3D intelligent positioning
Camera
| Image Sensor: | 1/3" Sony progressive scan CCD |
| Effective Pixels: | 1320K pixels |
| Minimum Illumination: |
Color: 0.5Lux@F1.6 B/W: 0.02Lux@F1.6 |
| White Balance: | Auto / Manual / One Touch WB / ATW |
| AGC: | Auto/Manual |
| S/N Ratio: | ≥ 50dB |
| BLC: | ON/OFF |
| Shutter Time: | 1/25-1/100,000s |
| Day& Night: | ICR |
| Digital Zoom: | 12x |
| Auto Focus: | Auto / Semi-automatic / Manual |
Lens
| Focal Length: | 4.7-84.6mm, 18x |
| Zoom Speed: | Approx.2s(Optical Wide-Tele) |
| Angle of View: | 55.2-3.2 degree (Wide-Tele) |
| Minimum Working Distance: | 10-1,500mm(Wide-Tele) |
| Aperture Range: | F1.6 - F2.8 |
Pan & Tilt
| Pan Range: | 360°endless |
| Pan Speed: | Pan manual speed: 0.1° ~ 300°/s, pan preset speed: 540°/s |
| Tilt Range: | -5°~90° (Auto Flip ) |
| Tilt Speed: | Tilt manual speed: 0.1° ~ 240°/s, tilt preset speed: 400°/s |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | 256 |
| Patrol: | 8 patrols, up to 32 presets per patrol |
| Pattern: | 4 patterns, with the recording time not less than 10 min per pattern |
| Power loss recovery: | Support |
| Park Action: | Call Preset / Patrol / Pattern / Auto Scan / Random Scan / Frame Scan, after a defined time of inactivity |
| PTZ Position Display: | ON/OFF |
| Freeze Frame: | Support |
Alarm
| Alarm Input: | 1channels input |
| Alarm Output: | 1 relay outputs, alarm response actions option |
| Alarm Actions: | Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client |
Input & Output
| Monitor Output: | 1.0Vp-p, 75 Ohm, BNC |
| Audio Input: | Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10% |
| Audio Output: | Line level, impendance: 600Ω |
Network
| Ethernet: | 10Base-T / 100Base-TX, RJ45 connector (Fiber Connector Optional) |
| Max.Image Resolution: | 1280×720 |
| Frame Rate: | 50Hz: 25 fps (1280×720) |
| Image Compression: | H.264 / MJPEG |
| Audio Compression: | G.711 / 16kbps |
| Audio Mode: | OFF/Audio input/Audio output |
| Protocols: | TCP/IP, HTTP, DHCP, DNS, RTP / RTCP, PPPoE（FTP, SMTP, NTP, SNMP optional) |
| No. of Simultaneous Users: | Up to 6 users |
| Dual Stream: | Support |
| Mini SD Card: | Manual REC / alarm REC, built-in SD/SDHC slot, up to 32GB |
| User/Host Level: | 3 levels: administrator, camera control, live view only |
| Security Measures: | User authentication (ID and PW), host authentication (MAC address) |
Client GUI
| Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Camera Name: | Up to 18 characters |
| Date & Time Display: | Time: Week: Date, 6 formats on the Client |
| Reading Patrol Message: | Display and reading of preset message contained in each patrol via client software |
Fiber Optical Interface (Available for Fiber dome)
| Data Mode: | 10 base-T / 100 base-TX |
| Physical Interface: | FC / SC optional |
| Fiber Wavelength: | TX1310 / RX1550nm |
| Fiber Type: | Single fiber / single mode |
| Transmission Distance: | 20km, 40km / 60km / 80km optional |
General
| Menu Language: | English / Chinese |
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Power Supply: | 24V AC (12V DC optional) |
| Power Consumption: | 15W max(30W max with heater, outdoor dome) |
| Working Temperature/Humidity: |
-30 ℃-65℃(-22℉-149℉)90% or less *(Special specs available for CIS market) |
| Protection Level: | IP66 standard (outdoor), TVS 3,000V lightning protection, surge protection and voltage transient protection |
| Mounting: | Various mounting modes optional |
| Dimensions: |
Φ220 × 325.5mm (Φ8.66” × 12.81”) (outdoor), Φ183.4 × 247mm (Φ7.22” × 9.72”) (indoor) Φ245 × 240mm ( Φ9.65” × 9.45”) (in-ceiling) |
| Weight (approx.): | 5Kg (11.02Ibs) |
| Mount Option: | Long-arm wall mount: DS-1614ZJ;Corner mount: DS-1633ZJ; Pole Mount: DS-1622ZJ; Power box mount:DS-1634ZJ |
