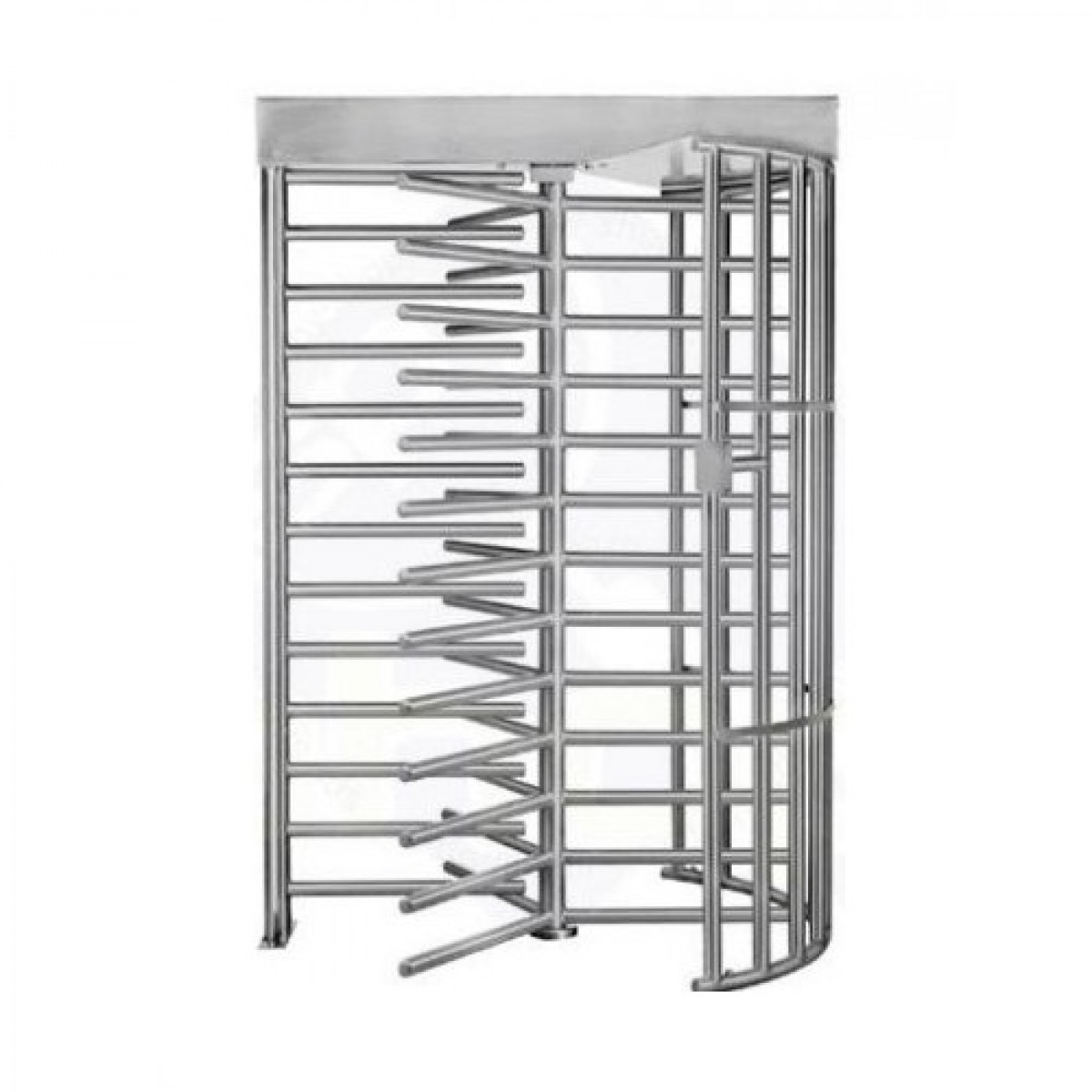

Turnichet Bidirectional Exterior IP 56/Inox

Place of Use Indoors, outdoor

Operating Temperature, Humidity  -20°C/+68°C (opt. -50°C with heater positive), RH 95% non-condensing

Body / Arm Features  : Built on main carriers and supported with pipe beams on sides, consisting of waterproof and protected top lid with damper for safety. Can

be completely disassembled.

Three-section rotor (120°), each having 9 (10 in optional 2120 mm clear passage height) one by one demountable arms.

Complies with UK H&S regulation of ≤98 mm gap between upright profiles.

Indicators / Illumination  Status - Direction Indicators : LED, standard/LED passageway illumination standard.

Power Operating Voltage : 110/220V AC 50/60 Hz. (±10%), 24V DC.

Consumption : ~8,1W at stand-by, during passage ~7,6W (varies according to the options and accessories used).

Operating Modes System operates bi-directionally (entry-exit).

Operation modes can be changed through dip switch, IOS and/or android app.

Entry - exit controlled Entry controlled, exit free Entry free, exit controlled

Single input both directions use Entry - exit free

Operating System Electromechanical manual operation (opt. electromechanical motorized operation).

Control System All functions, parameters and operating modes can be changed through the control board (microprocessor controlled), IOS and/or android

app. Firmware can be updated.

All past function updates and changes are kept in the server and records can be traced.

All inputs are opto-coupler protected.

Controllable by dry contact (ground control).

Compatible with all kinds of access control device.

Optional RS232, RS485 or TCP/IP module is available.

Flow Rate Passage capacity (manual) : max. 48 cycle/min. Nominal : ~25 pass/min.

Passage capacity (motorized) : max. 40 cycle/min. Nominal : ~20 pass/min.

(nominal passage rate can change depending on the access control system utilized)

Emergency Mode System allows free passage (entry-exit) in both directions (fail safe). Works compatible with fire warning and similar systems. At the end of

an emergency situation, system returns to its normal operating mode.

Power-off Situation  System allows free passage (entry-exit) in both directions (fail safe). Optionally, can be set (fail secure) as; entry-exit locked, entry free-exit

locked, or entry locked-exit free. Free passage in chosen direction by manual override key in fail secure option is available.

Weight  ~190 kg

Optional Features and Accessories Motor driven unit, wireless remote control (receiver-transmitter), manual control, manual override key (with fail secure option), counter

(with/without reset), card reader mounting bracket, passage completion sensor, contactless passage sensor (for motorized models),

heater positive, canopy, bottom plate (standard or for forklift handling), battery back-up, 316 grade stainless steel, RS232-RS485-TCP/IP

modules, limiter, 2120 mm clear passage height, mechanics compartment accessibility from the ceiling, trombone arms, different color

choices.
