Sursa de Alimentare cu 16 Camere 20A DS 13.8V si Back Up
Sursa de Alimentare cu 16 Camere 20A DS 13.8V si Back Up
1465,31Lei
Fără TVA: 1211,00Lei
- Producator: Surse Acumulatori
- Model: Sursa de Alimentare cu 16 Camere 20A DS 13.8V si Back Up
Produse vandute: 13
Click pentru specificatii
FEATURES:
- DC 13,8V uninterruptible power supply of cameras
- DC 12V uninterruptible power supply of the recorder
- fitting battery 2x17Ah/12V
- recorder space
- wide range of mains supply AC 176÷264V
- built-in power factor correction system (PFC)
- high efficiency 85%
- 16 outputs protected by 1A glass fuses for powering analog cameras
- 12V/5A output dedicated to supply the recorder
- battery charge and maintenance control deep discharge battery protection (UVP)
- battery charging current 2A/4A/8A jumper selectable
- battery output protection against short circuit and reverse polarity connection
- LED indication
- Protection:
- SCP short-circuit protection
- OLP overload protection
- OVP over voltage protection
- OHP overheat protection
- surge protection
- against sabotage
- warranty – 2 years from the production date
DESCRIPTION:
Abuffer PSU is intended for an uninterrupted supply to CCTV system devices requiring stabilized voltage of 12V
DC (+/-15%). The PSU has two circuits: first 1x5A/12VDC for supplying the recorder and 16x0,8A/13,8V DC for both
cameras. Current efficiency of the PSU amounts to:
1. Output current 16x0,8A+ 5Arecorder + 2Abattery charging *
2. Output current 16x0,7A+ 5Arecorder + 4Abattery charging *
3. Output current 16x0,4A+ 5Arecorder + 8Abattery charging *
Total current of the receivers + battery 20A* max.

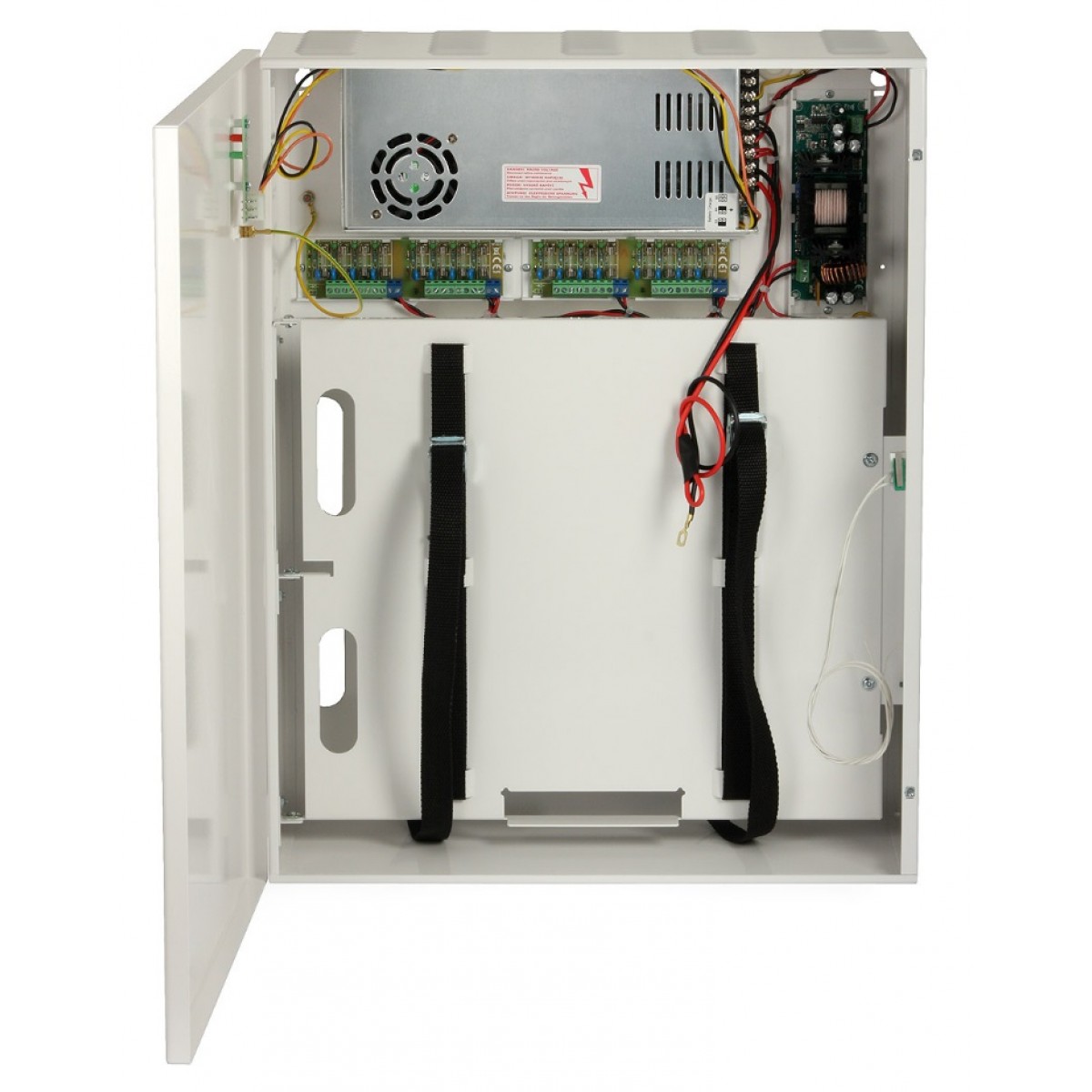

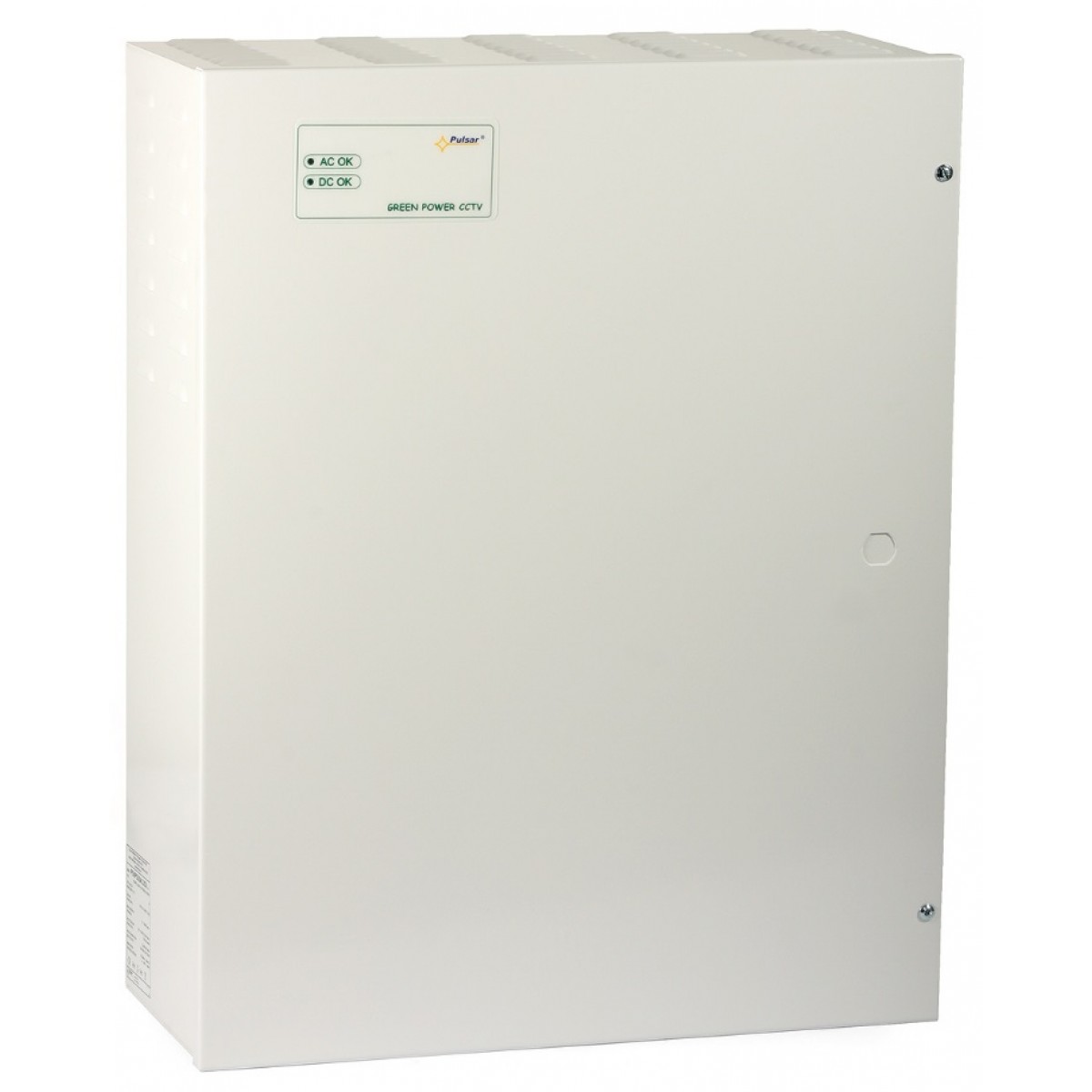

In case of a mains power loss 230V a battery back-up is activated immediately. The power supply unit is placed in
a metal enclosure (color RAL9003) with space for 2x17Ah / 12V batteries and a recorder. The enclosure is equipped with a
micro-switch indicating unwanted opening of the door (faceplate)
Name | PSUPS20A12CR |
Input voltage [VAC] | 176 - 265 |
Output voltage
(power outputs for cameras) [VDC] | 11...13.8 – buffer mode |
Output voltage
(stabilized power output for DVR) [VDC] | 12 |
Maximum output
currents (temperature <30°C) | 16x 0.8 A (cameras) + 5 A (DVR) + 2 A (battery charging) |
Internal current
consumption | 230 mA |
Battery charging
current | 2 A / 4 A / 8 A |
Overload protection | yes |
Overvoltage protection | yes |
Short circuit protection | yes (fuses) |
Rechargeable battery protection (SCP and
against reverse connection) | 30 A fuse |
Under Voltage Protection (UVP) | U<10 V (± 5%) –
automatic battery cut-off |
Optical indication of operation | yes (AC and DC) |
Space for rechargeable batteries | 2x 17 Ah / 12
V |
Space for DVR [mm] | 380 x 335 x 80 |
Operating temperature range [°C] | -10...+40 |
Dimensions (WxHxD) [mm] | 380x340x175+8 |
Weight [kg] | 12.4 |
Remarks | 8 mm distance
elements between the rear panel and a mounting plane |
