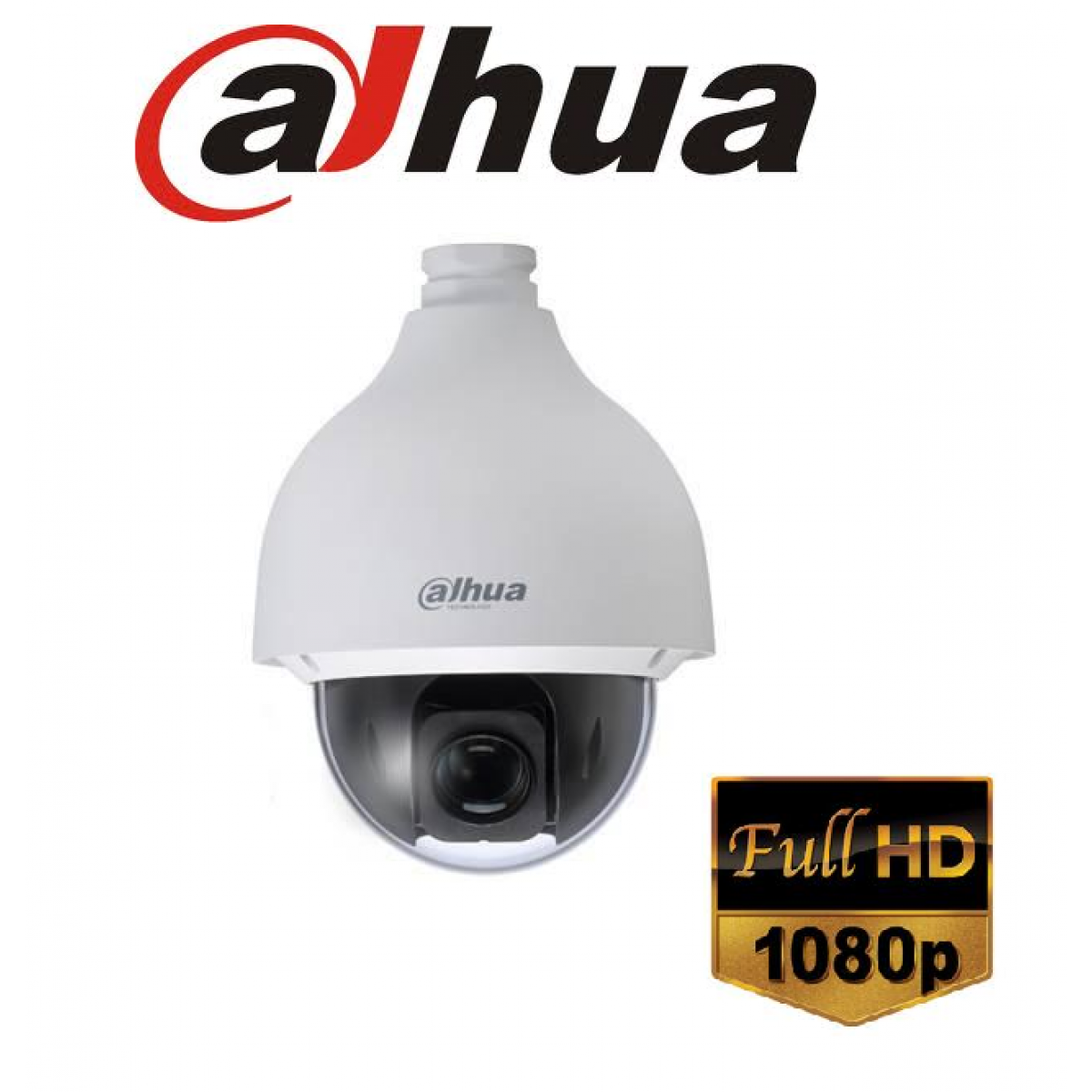

Camera Speed Dome Exterior HDCVI 2 Megapixeli Zoom Optic 20X Dahua
Camera Speed Dome Exterior HDCVI 2 Megapixeli Zoom Optic 20X Dahua
1760,55Lei
Fără TVA: 1455,00Lei
- Producator: Dahua Camere Analogice
- Model: Speed-Dome-Exterior-Full-hd-2Mp-Zoom 20X-Dahua
Produse vandute: 6
> 20x optical zoom
> Max 20/30fps@1080P, 50/60fps@720P resolution
> DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
> Max 500°/s pan speed, 360° endless pan rotation
> Control over coaxial cable, long distance real-time transmission
> HD and SD switchable
> Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
> Built-in 2/1 alarm in/out
> Support intelligent 3D positioning with DH-SD protocol
> IP67(outdoor), IK10, OSD

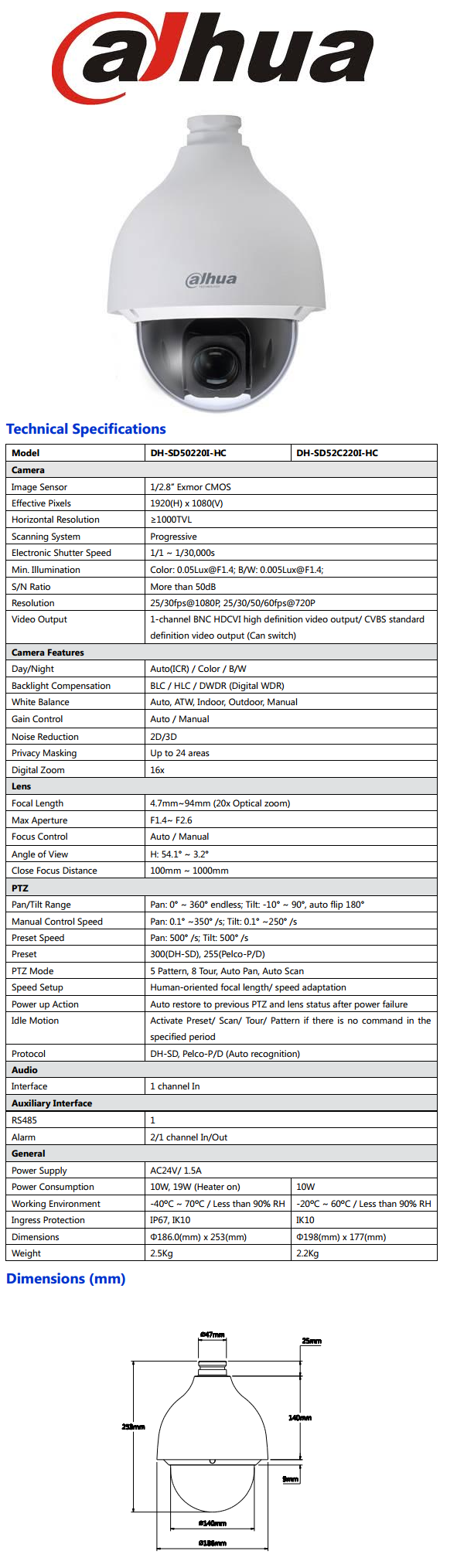

| Camera | ||
| Image Sensor | 1/2.8” Exmor CMOS | |
| Effective Pixels | 1920(H) x 1080(V) | |
| Horizontal Resolution | ≥1000TVL | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/1 ~ 1/30,000s | |
| Min. Illumination | Color: 0.05Lux F1.4; B/W: 0.005Lux F1.4; | |
| S/N Ratio | More than 50dB | |
| Resolution | 25/30fps 1080P, 25/30/50/60fps 720P | |
| Video Output | 1-channel BNC HDCVI high definition video output | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | 2D/3D | |
| Privacy Masking | Up to 24 areas | |
| Digital Zoom | 16x | |
| Lens | ||
| Focal Length | 4.7mm~94mm (20x Optical zoom) | |
| Max Aperture | F1.4~ F2.6 | |
| Focus Control | Auto / Manual | |
| Angle of View | 54.1° ~ 3.2° | |
| Close Focus Distance | 100mm ~ 1000mm | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s | |
| Preset Speed | Pan: 500° /s; Tilt: 500° /s | |
| Preset | 300 | |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period | |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) | |
| Audio | ||
| Interface | 1 channel In | |
| Auxiliary Interface | ||
| RS485 | 1 | |
| Alarm | 2/1 channel In/Out | |
| General | ||
| Power Supply | AC24V/ 1.5A | |
| Power Consumption | 10W, 19W (Heater on) | |
| Working Environment | -40ºC ~ 70ºC / Less than 90% RH | |
| Ingress Protection | IP67, IK10 | |
| Dimensions | Φ186.0(mm) x 253(mm) | |
| Weight | 2.5Kg | |
