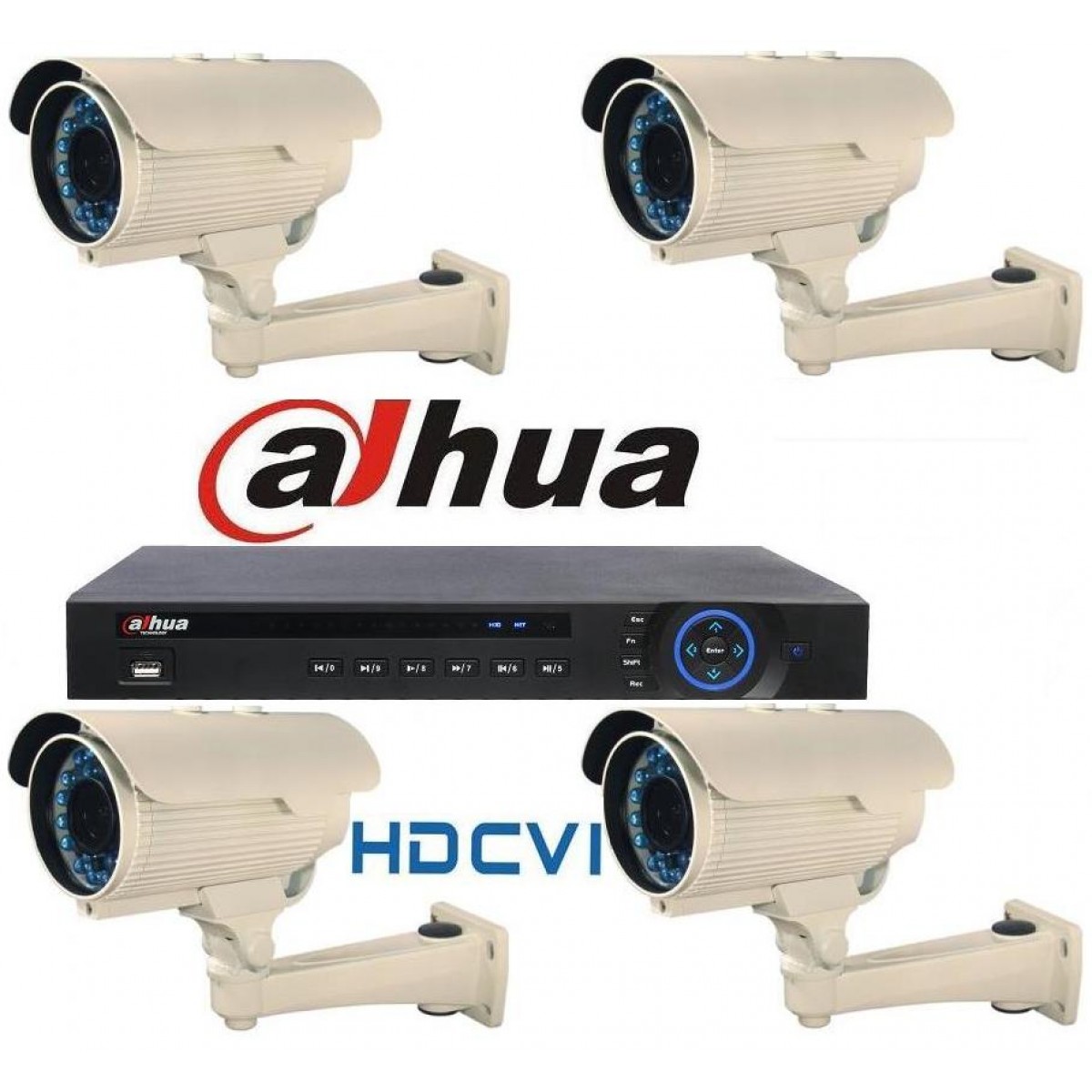

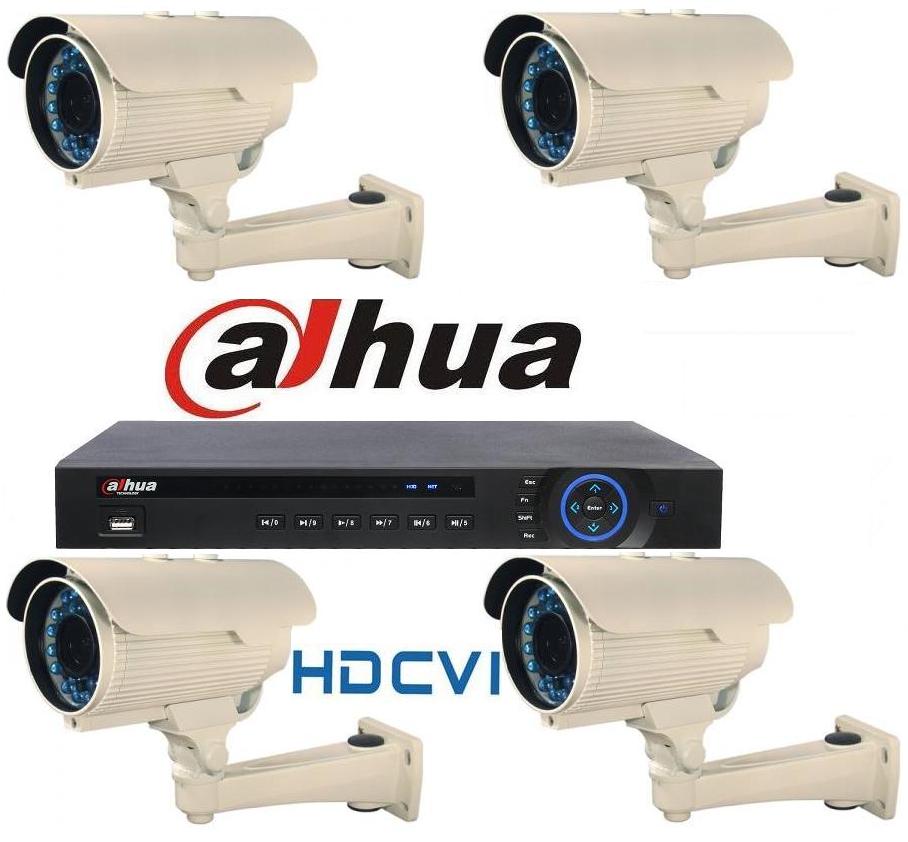

Kit Supraveghere Video 2 Megapixeli Exterior HD-CVI Dahua
Kit Supraveghere Video 2 Megapixeli Exterior HD-CVI Dahua
0,00Lei
Fără TVA: 0,00Lei
- Producator: Dahua Camere Analogice
- Model: Kit-Dvr-100fps-HD-CVI-Ext-2.8-12mm-IR-40m-1080p-Dahua
Produse vandute: 9
Videorecorder HD-CVI 4video/4audio
| System | ||||
| Main Processor | Embedded processor | |||
| Operating System | Embedded LINUX | |||
| Video | ||||
| Input | 4 channel, BNC | |||
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) | |||
| Audio | ||||
| Input | 4 channel, BNC | |||
| Output | 1 channel,BNC | |||
| Two-way Talk | Reuse audio input/output channel 1 | |||
| Display | ||||
| Interface | 1 HDMI, 1 VGA, 1BNC | |||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 | |||
| Display Split | 1/4 | |||
| Privacy Masking | 4 rectangular zones (each camera) | |||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |||
| Recording | ||||
| Video/Audio Compression | H.264 / G.711 | |||
| Resolution | 1080P(1920×1080/1920×900)/(720P(1280×720/1280×600)/960H(960×576/960×480)/D1/4CIF(704×576/704×480) /CIF(352×288/352×240)/QCIF(176×144/176×120) | |||
| Record Rate | Main Stream: | 1080P/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) | ||
| Extra Stream | CIF/QCIF(1~25/30fps) | |||
| Bit Rate | 48~8192Kb/s | |||
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | |||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |||
| Video Detection&Alarm | ||||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips | |||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |||
| Alarm Input | 4 channel | |||
| Alarm Output | 3 channel | |||
| Playback & Backup | ||||
| Sync Playback | 1/4 | |||
| Search Mode | Time/Date, MD & Exact search (accurate to second) | |||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |||
| Backup Mode | USB Device / Network | |||
| Network | ||||
| Ethernet | RJ-45 port (10/100M/1000M) | |||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | |||
| Max. User Access | 128 users | |||
| Smart Phone | iPhone, iPad, Android, Windows Phone | |||
| Storage | ||||
| Internal HDD | 2 SATA port, up to 8TB | |||
| Auxiliary Interface | ||||
| USB Interface | 2 ports (1 Rear), USB2.0 | |||
| RS232 | 1 port, For PC communication & Keyboard | |||
| RS485 | 1 port, For PTZ control | |||
| General | ||||
| Power Supply | DC12V/5A | |||
| Power Consumption | 15W(without HDD) | |||
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | |||
| Dimension(W×D×H) | 1U, 375mm×285mm×45mm | |||
| Weight | 2.35KG(without HDD) | |||
Camere supraveghere video megapixel exterior HD-CVI
- Camera bullet de exterior HDCVI Senzor 1/3";
- 2Megapixeli;
- Rezolutie 1920x1080@25fps,1280x720@25fps;
- Iluminator IR 24 leduri 40m;
- Day/Night cu filtru IR autoretractabil;
- Lentila 2.8-12mm, sensibilitate 0.05Lux/F1.2, 0 Lux IR on;
- 3D noise reduction, meniu OSD control direct din DVR;
- Temperatura de functionare -30°C~60°C;
- Alimentare DC 12V;
- Transmisia se face pe cablu coaxial sau UTP (cu videobalun) pe o distanta de maxim 500m/720P,300m/1080p.
