Videorecorder dvr Megapixel 16 canale video 16 canale audio HD-CVI
-10 %

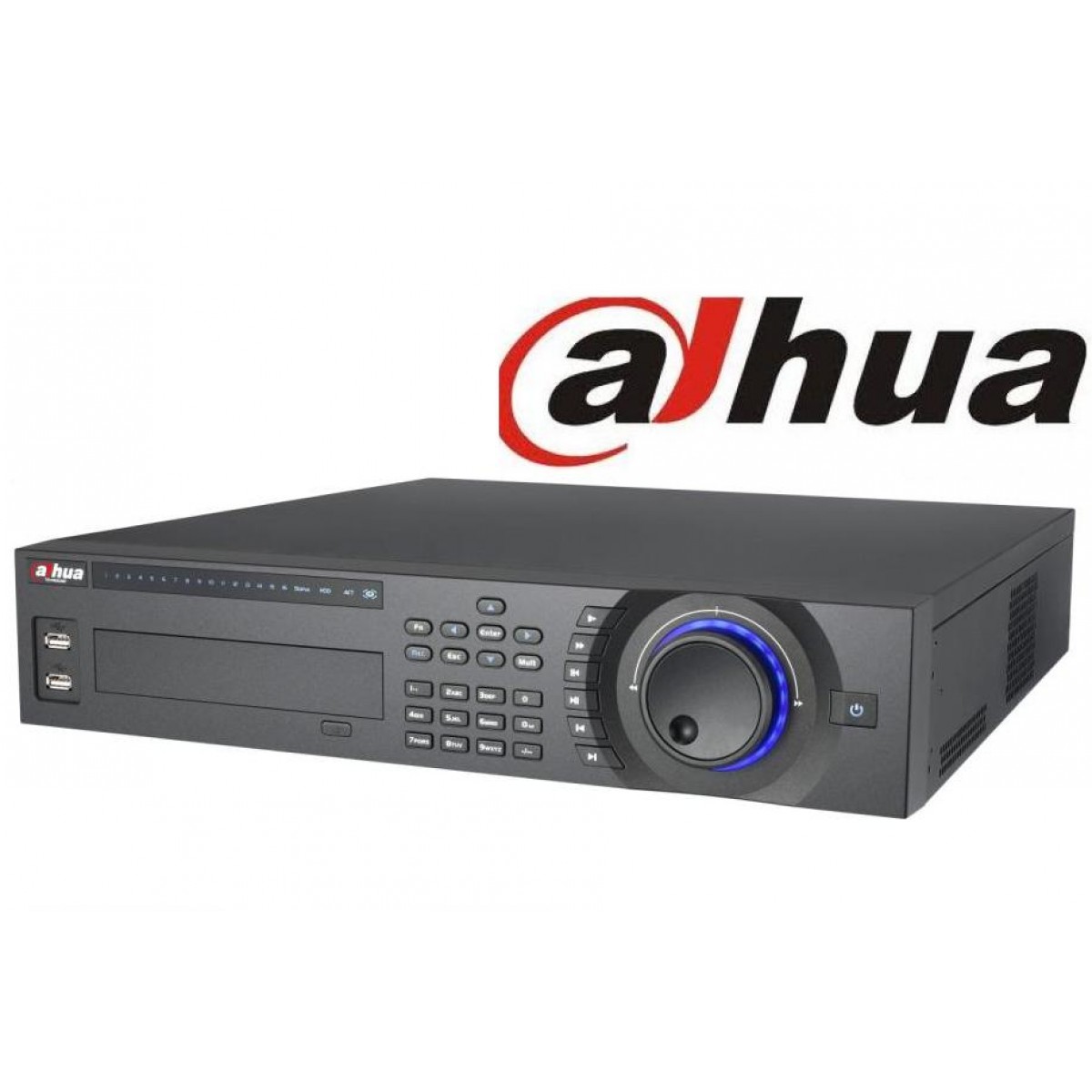

Videorecorder dvr Megapixel 16 canale video 16 canale audio HD-CVI
Oferta speciala expira in:
Zile
Ore
Min
Sec
3235,42Lei
3594,91Lei
Fără TVA: 2673,90Lei
- Producator: Dahua Camere Analogice
- Model: DVR-Dahua-16-Video-16-Audio-HDMI-400/200fps-720p/1080p-HD-CVI
Produse vandute: 7
| Model | 4 canale video | 8 canale video | 16 canale video | ||
| System | |||||
| Main Processor | Embedded processor | ||||
| Operating System | Embedded LINUX | ||||
| Video | |||||
| Input | 4 channel, BNC | 8 channel, BNC | 16 channel, BNC | ||
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) | ||||
| Audio | |||||
| Input | 4 channel, BNC | 8 channel, BNC | 16 channel, BNC | ||
| Output | 1 channel, BNC | ||||
| Two-way Talk | Reuse audio input/output channel 1 | ||||
| Display | |||||
| Interface | 1 HDMI, 1 VGA ,1 BNC | ||||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | ||||
| Display Split | 1/4 | 1/4/8/9 | 1/4/8/9/16 | ||
| Privacy Masking | 4 rectangular zones (each camera) | ||||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||||
| Recording | |||||
| Video/Audio Compression | H.264 / G.711 | ||||
| Record Resolution | 1080p(1920x1080)/720P(1280×720/1280×600)/960H(960×576/960×480)/D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120) | ||||
|
Record Rate | Main stream | 1080p(1920x1080)/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) | |||
| Extra stream | CIF/QCIF(1~25/30fps) | ||||
| Bit Rate | 48~6144Kb/s | ||||
| Recording Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | ||||
| Recording Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||||
| Video Detection & Alarm | |||||
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen tips | ||||
| Motion Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||||
| Alarm Input | 4 channel | 8 channel | 16 channel | ||
| Relay Output | 6 channel | ||||
| Playback & Backup | |||||
| Sync Playback | 1/4 | 1/4/8 | 1/4/8/16 | ||
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | ||||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||||
| Backup Mode | USB Device / Network | ||||
| Network | |||||
| Ethernet | 2RJ-45 port (10/100M/1000M) | ||||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server | ||||
| Max. User Access | 128 users | ||||
| Smart Phone | iPhone, iPad, Android, Windows Phone | ||||
| Storage | |||||
| Internal HDD | 8 SATA ports (8HDDs or 6HDDs+1CD/DVD-RW), up to 32TB | ||||
| External HDD | 1 eSATA port (Max 4 SATA HDDs), up to 16TB | ||||
| Auxiliary Interface | |||||
| USB | 4 ports (2 Rear), USB2.0 | ||||
| RS232 | 1 port, For PC communication & Keyboard | ||||
| RS485 RS422 | 1 port, For PTZ control, 1 port for Keybord | ||||
| General | |||||
| Power Supply | AC 100~240 V, 50/60 Hz | ||||
| Power Consumption | 25W | 30W | 40W | ||
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | ||||
| Dimension(W×D×H) | 2U, 440mm×460mm×89mm | ||||
| Weight | 6.5KG(without HDD) | ||||
