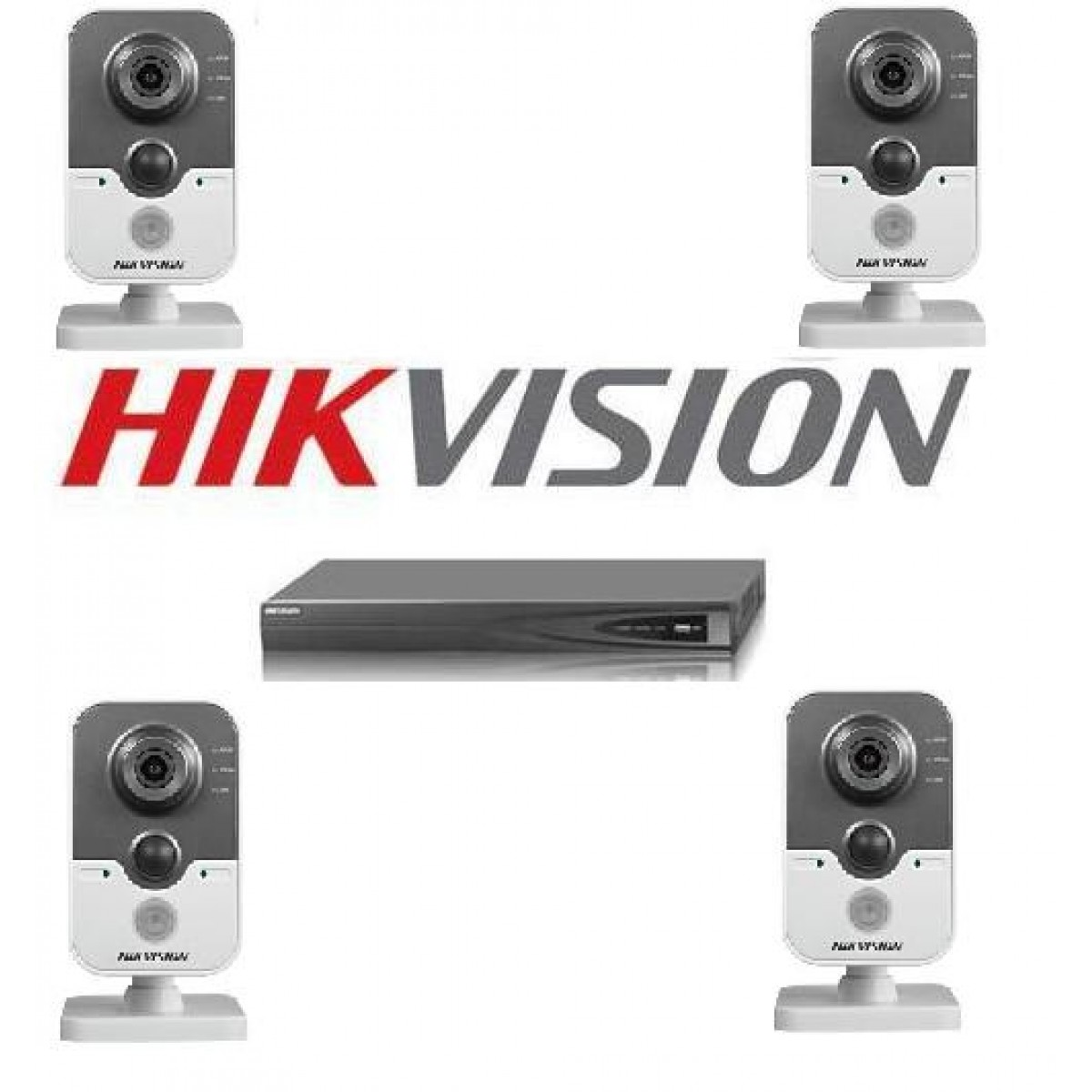

Kit NVR 4 Canale PoE 4 Camere Ip Wi-Fi 3 Megapixeli Hikvision
-24 %
Kit NVR 4 Canale PoE 4 Camere Ip Wi-Fi 3 Megapixeli Hikvision
Oferta speciala expira in:
Zile
Ore
Min
Sec
2722,50Lei
3585,99Lei
Fără TVA: 2250,00Lei
- Producator: Hikvision Videorecorder Ip
- Model: Kit-PoE-4Video-4cam-Ip-audio-wifi-pir-2.8mm-IR-10m-3Mp-Hikvision
Produse vandute: 7
Videorecorder 4 Canale Rezolutie Mare 5 Megapixeli - HDMI
Key Features
• Third-party network cameras supported
• Up to 5 Megapixels resolution recording
• HDMI and VGA output at up to 1920×1080P resolution
• HDD quota and group management
• 4 independent PoE network interfaces
Video/Audio Input
Video/Audio Output
Hard Disk Driver
External Interface
General
| IP Video Input: | 4-ch |
| Two-way Audio: | 1-ch RCA(2.0Vp-p, 1kΩ) |
| VGA Output: |
1-ch, resolution: 1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| HDMI Output: |
1-ch, resolution: 1920 × 1080P /60Hz, 1920 × 1080P /50Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz |
| Recording resolution: | 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) |
| Playback Resolution: | 5MP /3MP / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback: | 4-ch |
| Interface Type: | 2 SATA Interfaces |
| Capacity: | Up to 4TB capacity for each disk |
| Network Interface: | 1 RJ45 10M/100M/1000M adaptive Ethernet Interface 4 independent 100 Mbps PoE network interfaces |
| USB Interface: | 2 USB 2.0 Interfaces |
| Serial Interface: | 1 RS-485 interface (Reserved) |
| Power Supply: | 100~240VAC, 47~63Hz, 3A |
| Consumption: | ≤ 15 W (without hard disk) |
| Working Temperature: | -10 °C ~ +55 °C |
| Working Humidity: | 10%~90% |
| Chassis: | 19-inch rack-mounted 1U chassis |
| Dimensions: | 445 × 290 × 45mm (W x D x H) |
| Weight: | ≤ 2 Kg (without hard disk) |
Camera Cube IP 3Mpx cu audio, IR si PIR
click pentru manualul de utilizare
- • Full HD1080p Video
• Up to 10m IR
• PIR
• DWDR/3D DNR/BLC
• Support On-board Storage, up to 64GB• Built-in Wi-Fi optionalCamera Image Sensor: 1/3" Progressive Scan CMOS Min. Illumination: 0.07Lux @(F1.2,AGC ON) ,0 Lux with IR Shutter time: 1/25(1/30) s to 1/100,000 s Lens: 4mm@ F2.0 (2.8mm, 6mm optional)
2048 × 1536:
Angle of view: 86°(4mm), 70°(4mm), 43.3°(6mm)
1920 × 1080:
Angle of view: 98.5°(4mm), 79°(4mm), 49°(6mm)Lens Mount: M12 Day& Night: IR cut filter with auto switch Wide Dynamic Range: Digital WDR Digital noise reduction: 3D DNR Compression Standard Video Compression: H.264/M-JPEG Bit Rate: 32 Kbps ~ 16 Mbps Audio Compression: G.711/G.726/MP2L2 Dual Stream: Yes Image Max. Image Resolution: 2048×1536 Frame Rate: 50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720)
60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720)Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser BLC: Yes, zone configurable ROI: Yes, up to 4 configurable areas Network Network Storage: NAS Alarm Trigger: Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,BonjourSecurity: User Authentication, Watermark, IP address filtering, anonymous access System Compatibility: ONVIF, PSIA, CGI, ISAPI Interface Audio: Internal Microphone and Speaker Communication Interface: 1 RJ45 10M / 100M ethernet interface On-board storage: Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB Reset Button: Yes Wi-Fi Specification (-W) Wireless Standards: IEEE802.11b, 802.11g, 802.11n Draft Frequency Range: 2.4 GHz ~ 2.4835 GHz Channel Bandwidth: 20/40MHz Support Modulation Mode: 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDMSecurity: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS Transmit Power: 11b: 17±1.5dBm @ 11Mbps
11g: 14±1.5dBm @ 54Mbps
11n: 12.5±1.5dBmReceive Sensitivity: 11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical)Transmission Rate: 11b: 11Mbps
11g: 54Mbps
11n: up to 150MbpsWireless Range: Outdoor: 200m，Indoor: 50m(depend on environment) General Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)Power Supply: 12 VDC ± 10%, PoE (802.3af) Power Consumption: 5W MAX IR Range: 10 meters PIR: Angle of detection: 80°
Detection range: 10 metersDimensions: 66×91.5×131.3(2.60”×3.60” ×5.17”) Weight: 400g(0.88lbs)
