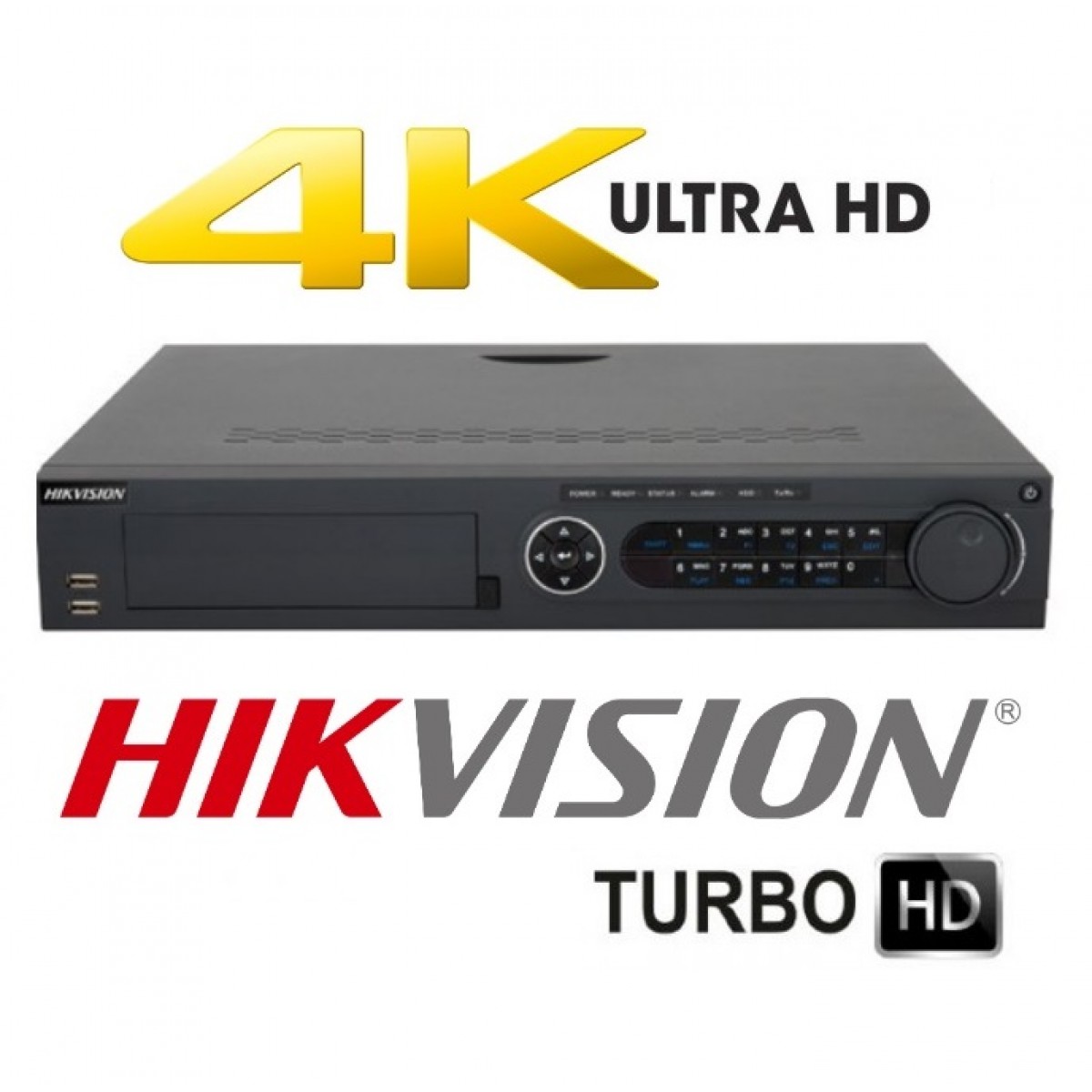

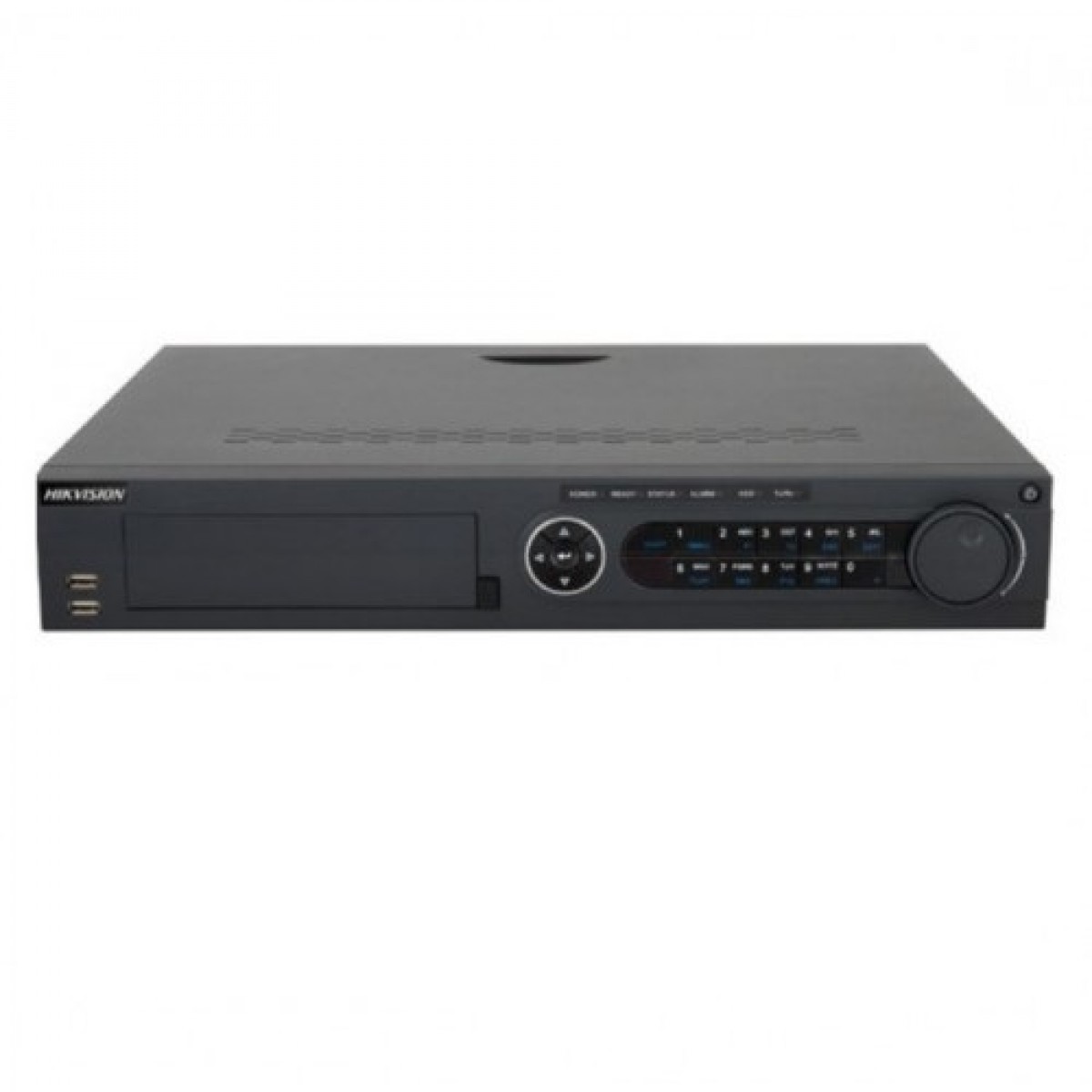

Dvr TurboHD 5.0 8MP 4K 16/4Ch Video/Audio 4HDD Hikvision

1. Support deep learning-based analysis.
2. Support H.265 Pro+/H.265 Pro/H.265 video compression.
3. Support HDTVI/AHD/CVI/CVBS/IP video input.
4. Max 18 IP cameras input (up to 8 MP).
5. Max 800 m for 1080p and 1200 m for 720p HDTVI signal.
6. Up to 10 TB capacity per HDD.

Video/Audio Input

Audio Input: 4-ch

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Analog Video Input: 16-ch

PAL/NTSC Adaptive: Support

Analog and HD-TVI video input: 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Supported camera types: HDTVI input 8 MP/15Hz, 8 MP/12.5Hz, 5 MP/20Hz, 5 MP/12Hz, 4 MP/30Hz, 4 MP/25Hz, 3 MP/18Hz,

1080p/30Hz, 1080p/25Hz, 720p/60Hz, 720p/50Hz, 720p/30Hz, 720p/25Hz

AHD input 5 MP/20Hz, 4 MP/30Hz, 4 MP/25Hz, 1080p/30Hz, 1080p/25Hz, 720p/30Hz, 720p/25Hz

HDCVI input 4 MP/30Hz, 4 M/25Hz, 1080p/30Hz, 1080p/25Hz, 720p/30Hz, 720p/25Hz

IP Video Input: 2-ch

Audio Compression: G.711u

Audio Input Interface: 4-ch, RCA (2.0 Vp-p, 1 KΩ)

Video/Audio Output

HDMI 1/ VGA and HDMI2: HDMI 1/VGA output HDMI 1: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60HzVGA: 1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI 2 output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Encoding resolution: 8 MP/5 MP/4 MP/3M/1080P/720P/WD1/4CIF/VGA/CIF

Frame Rate: Main stream: 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/3 M@18 fps/1080P/720P/WD1/4CIF/VGA/CIF Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)

Video Bit Rate: 32 Kbps-10 Mbps

Stream Type: Video/Video&Audio

Audio Bit Rate: 64kbps

Dual Stream: Support

Synchronous Playback: 16-ch

Hard Disk Driver

Interface Type: 4 SATA Interfaces

Capacity: Up to 10 TB capacity for each disk

External Interface

Network Interface: 2; 10M / 100M / 1000M self-adaptive Ethernet interfaces

USB Interface: 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel

Serial Interface: 1 RS-232 serial interface 1 RS-485 serial interface, full-duplex,1 RS-485 keyboard interface

Alarm Input: 16-ch

Alarm Output: 4-ch

General

Power Supply: 110 to 220 VAC

Consumption: ≤ 110 W

Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity: 10% to 90%

Dimensions: 440 × 407 × 75 mm (17.3 × 16.0 × 3.0 inch)

Weight: ≤ 5 kg (11.0 lb)
