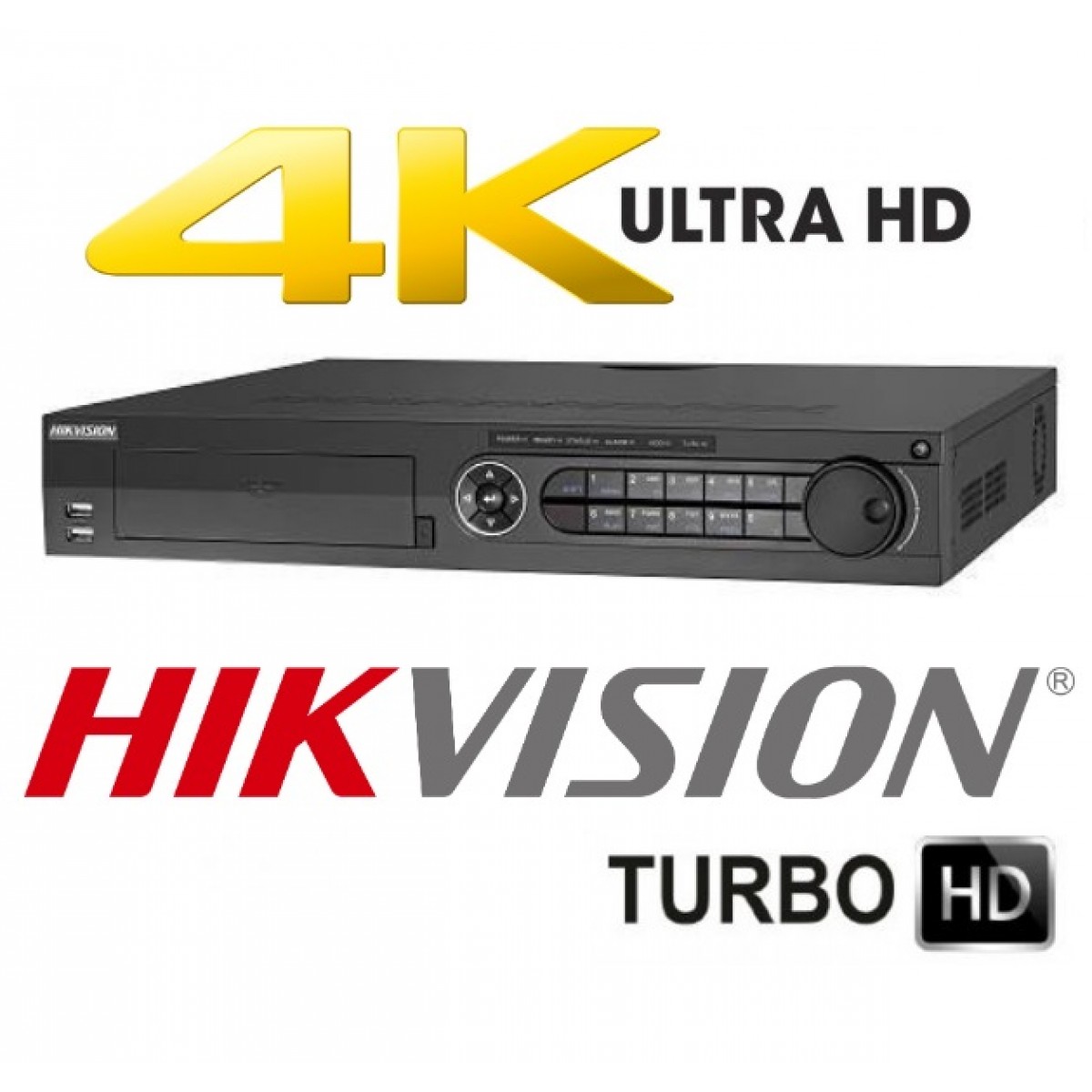

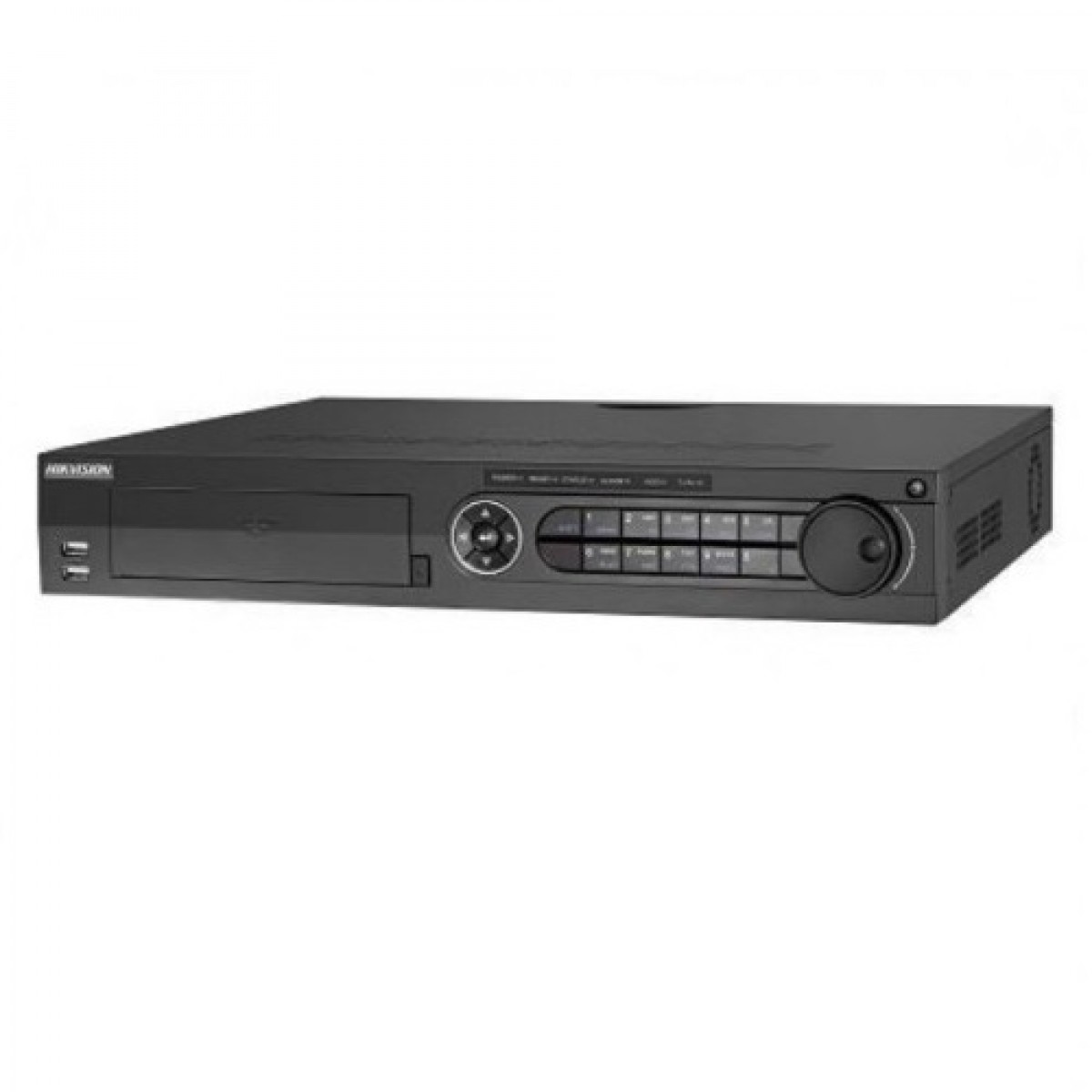

Dvr TurboHD 4.0 8MP 4K 16/4Ch Video/Audio 4HDD Hikvision

1. H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
2. Self-adaptive HDTVI, AHD, HDCVI and analog cameras
3. Full channel recording at up to 5 MP resolution
4. Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 × 2160) resolution
5. Four SATA interfaces (up to 8 TB capacity per HDD)
6. 4/8/16-ch synchronous playback
7. Supports POS triggered recording and POS information overlay

Video/Audio Input

Audio Input: 4-ch, RCA (2.0 Vp-p, 1 KΩ)

Video Compression: H.265+/H.265/H.264+/H.264

Analog Video Input: 4-ch/8-ch/16-ch,BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Analog and HD-TVI video input: 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60

IP Video Input: 7304:2-ch (up to 6-ch), 7308:2-ch (up to 10-ch), 7316:2-ch (up to 18-ch), Up to 8 MP resolution,Supports H.265+/H.265/H.264+/H.264 IP cameras

Audio Compression: G.711u

Video/Audio Output

HDMI/VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI2 output:1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Frame Rate: Main stream: 5 MP@12fps; 4 MP@ 15fps; 3 MP@18fps; 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)

Video Bit Rate: 32 Kbps to 10 Mbps

Stream Type: Video, Video & Audio

Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)

Audio Output: 2-ch, RCA (Linear, 1 KΩ)

Audio Bit Rate: 64 Kbps

Dual Stream: Support

Synchronous Playback: 4-ch/8-ch/16-ch

Network management

Remote connections: 128

Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP

Hard Disk Driver

Interface Type: 4 SATA interfaces

Capacity: Up to 8 TB capacity for each disk

e-SATA Interface: Support

Disk Array

Array Type: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

External Interface

Network Interface: 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface

USB Interface: Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0

Serial Interface: RS-232, RS-485 (full-duplex), Keyboard

Alarm Input: 16

Alarm Output: 4

General

Power Supply: 100 to 240 VAC

Consumption: ≤ 35 W/≤ 45 W/≤ 65 W

Working Temperature: -10 ºC to +55 ºC (+14 ºF to +131 ºF)

Working Humidity: 10% to 90%

Dimensions: 445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)

Weight: ≤ 5 kg (11.0 lb)
